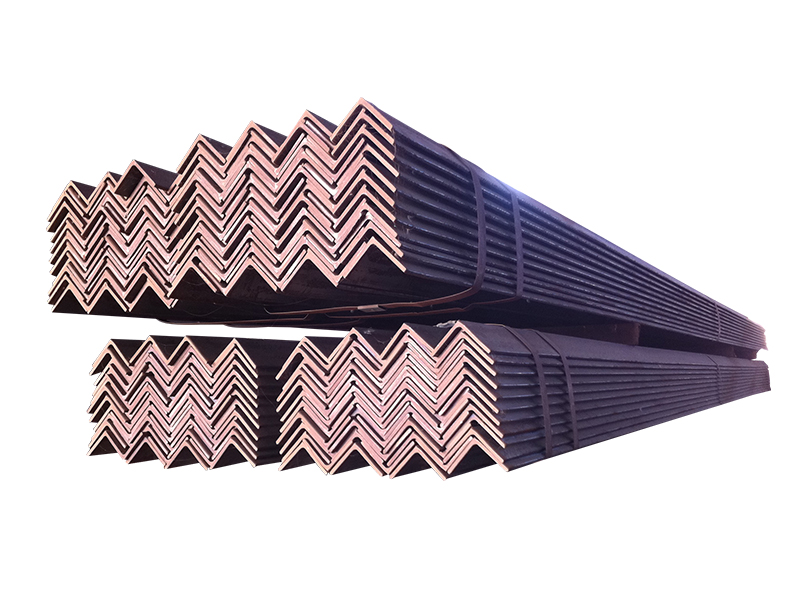

Angle Steel staaf, algemeen bekend as L-bracket of Angle Iron, is 'n tipe struktuurstaal met twee bene wat 90 grade uitmekaar is. As gevolg van hul sterkte, duursaamheid en aanpasbaarheid, word hulle wyd gebruik in die konstruksie- en vervaardigingsektore. TKL Steel het 'n wye reeks hoekstawe beskikbaar.
Angle Steel staaf speel 'n belangrike rol in die versterking van strukturele integriteit in enigiets van swaar industriële masjinerie soos vurkhysers en stootskrapers tot huishoudelike toestelle soos wasmasjiene en stowe. Hulle bied 'n unieke ontwerp wat krag en beskerming by die toerusting voeg wanneer dit in hoeke geplaas word.
Standaard |
JIS G 3192 / BS EN 10056 / ASTM A6 / GBT706 |
Staal graad |
Q235B, Q345B, Q420B/C, Q460C, SS400/SS540, S235JR/S235J0/S235J2, S275JR/S275J0/S275J2, S355JR/S355J0/S355J |
Dikte |
2mm-24mm |
Grootte |
Gelyke rand: 20*20mm-200*200mm Ongelyke rand: 45*30mm-200*125mm |
Lengte |
5.8m, 6m, 11.8m, 12m of ander lengtes benodig |
Verpakking |
Gebondel deur staalbande |
Aansoek |
Word wyd gebruik in verskeie boustruktuur en ingenieursstruktuur, soos die balk, brûe, transmissietoring, hefvervoermasjinerie
, skip, industriële oond, reaksietoring en houerraam, ens. |
Gelyke hoek staal Grootte
25x25x2mm,25x25x2.5mm,25x25x3mm,30x30x2.5mm,30x30x3mm,40x40x3mm,40x40x4mm,
45x45x4mm,45x45x5mm,50x50x3mm,50x50x4mm,50x50x5mm,50x50x6mm,56x56x5mm
63x63x5mm,63x63x6m,70x70x5mm,90x90x10mm,100x100x6mm,100x100x7mm,100x100x8mm,
100x100x10mm,100x100x12mm,110x110x8mm,110x110x10mm,125x125x8mm,125x125x10mm,
140x140x10 mm, 140x140x12 mm, 140x140x14 mm, 150x150x10 mm, 150x150x12 mm, 150x150x12 mm,
160x160x10 mm, 160x160x12 mm, 160x160x14 mm, 160x160x16 mm, 180x180x12 mm, 180x80x14 mm,
180x180x18mm, 200x200x16mm, 200x200x18mm, 200x200x20mm
Ongelyke hoek staal Grootte
50x32mm,63x40mm,75x50mm,90x56mm,100x63x7mm,100x63x8mm,100x63x10mm,
100x70x6mm,100x70x10mm,100x80x6mm,100x80x7mm,100x80x8mm,100x80x10mm,110x70mm,
125x80x7mm,125x80x10mm,140x90x8mm,140x90x12mm,150x75x9mm,150x75x10mm,150x75x12mm,
150x75x15mm, 150x100x10mm, 150x100x12mm, 200x100x10mm, 200x10012mm, 200x100x15mm
160x100x10 mm, 160x100x12 mm, 180x110x16 mm, 200x125x12 mm, 200x125x16 mm
